開発者向けにAI性能を強化 MSI EdgeXpert
ディープラーニング向け NVIDIA DGX™ Spark プラットフォーム
-
NVIDIA® Grace Blackwell Architecture:
- NVIDIA Blackwell GPU & Arm 20コアCPU
- NVIDIA® NVLink-C2C® CPU-GPU メモリインターコネクト - 128 GB LPDDR5x コヒーレント、ユニファイド システム メモリ
- 1000 AI TOPS (FP4)
- AIパフォーマンス
- フルスタックソリューション、ハードウェア&ソフトウェア、AI開発者向けに設計
- NVIDIA Blackwell GPU
- 20 core ARM CPU
-
128GB
Unified System
Memory - 1,000 AI TOPS
- CPU + GPU
製品仕様
Part Number
MS-C931-SKU
System Processor
CPU
20 core ARM, 10 Cortex-X925 + 10 Cortex-A725 ARM
Frequency
-
L2 Cache
-
CPU Type
onboard
Chipset
onboard
BIOS
-
Tensor Performance
1000 AI TOPS (FP4, Sparse)
Memory
Technology
LPDDR5x
Max. Capacity
128GB
Socket
onboard
Graphic
Controller
Nvidia® Blackwell Architecture
Graphic Memory
Share 128GB unified Memory
Multiple Display
4 independent displays
Display Interface
HDMI 2.1b, 4x DP1.4a via USB-C
Ethernet
Controller
1 x 10GbE
Audio
Controller
-
H/W Monitor
Watchdog Timer
-
Smart Fan
-
title
title
content
TPM
Controller
Y
I/O Interface
PS/2
-
CANbus
-
LVDS
-
VGA
-
RJ-45
1
PoE
-
Audio
HDMI Multichannel Audio output
USB
4 x USB 3.2 Type-C
Parallel
-
Serial
-
HDMI
1
GPIO
-
DVI
-
DisplayPort
4 via USB-C
Antenna
2
QSFP
2
WiFi
WiFi 7
Bluetooth
BT 5.3
Expansion Slot
PCIe x16
-
PCIe x8
-
PCIe x4
-
PCIe x1
-
PCI
-
M.2
1x M.2 M Key 1TB SSD with self-encryption
Mini-PCIe
-
Storage
SATA
-
CFast
-
mSATA
-
CompactFlash
-
Power Supply
DC Input
~240W USB-C with external power adapter
AC Input
-
title
IP Rating
-
Operating Temperature
0 ~ 25°C (w/SSD)
Operating Humidity
10 ~ 90%, non-condensing
Storage Humidity
10 ~ 90%, non-condensing
Storage Temperature
0 ~ 60°C
Vibration
-
Shock
-
Physical Characteristics
Dimensions
151 x 151 x 52 mm
Weight
1.2 kg
Mounting
-
Certification
EMC
FCC Class B, CE, UKCA, VCCI, BSMI
Safety
BSMI

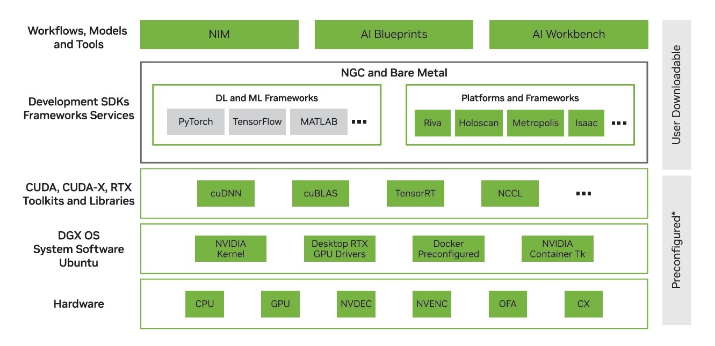

Software Platform
OS Support
NVIDIA DGX™ OS
NIC
Controller
Connect-X Smart NIC
